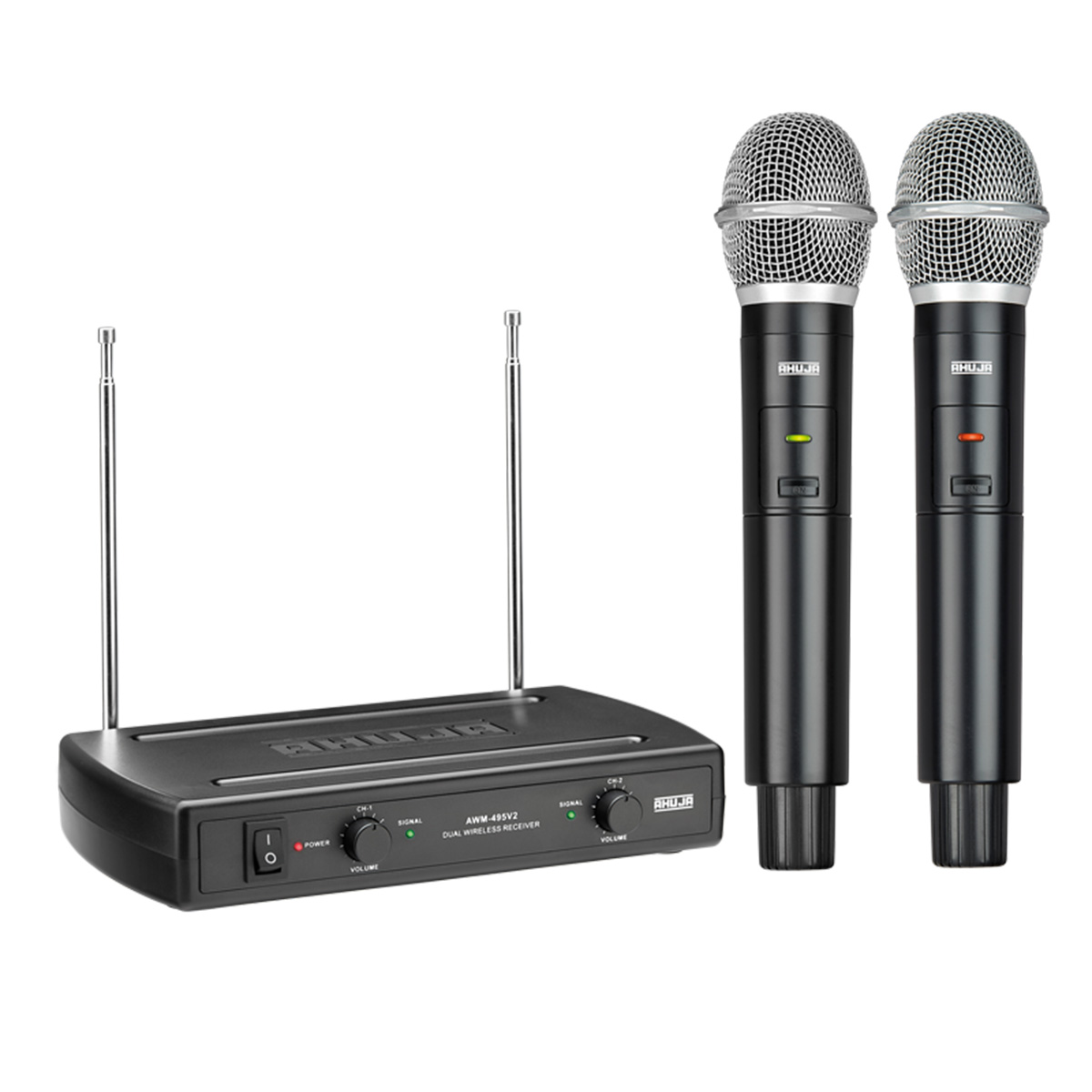

Ahuja AWM-495V2 DUAL PA VHF Wireless Microphones

Product Description

Ahuja AWM-495V2 DUAL PA VHF Wireless Microphones



Product details of Ahuja AWM-495V2 DUAL PA VHF Wireless Microphones

  • Compact, lightweight, Dual Channel VHF Wireless Microphone System.
  • Operates at Quartz Crystal Locked VHF High Band frequency and available in different frequency groups. Two transmitters with separate frequencies and one dual channel receiver.
  • Internal antenna in the transmitter and two telescopic antennas in the receiver for clear and distortion free reception.
  • Receiver operates on 12V DC through an AC Adaptor supplied alongwith the system. Each transmitter operates with a 2×1.5V AA Pencil Cell.
  • Transmitters have 2-position ON/OFF slide switch.
  • Audio output from receiver available at OUT 1 & OUT 2 individually and as mixed output at OUT 1 + 2.
RF Output Power <15mw (max.)
Modulation Mode FM (F3E)
Microphone Element Dynamic, Cardioid
Frequency Response 50-15,000Hz
Dynamic Range 80dB
Current Consumption ≤100mA
Power Requirement 3V (2 × 1.5V AA Pencil Cells)
Antenna Type Internal Dipole
Controls Transmitter ON/OFF switch
Indication Red & Green LEDs for indicating transmitter ON
Dimensions ø55 (L248) mm
Weight 180g (w/o battery)
RECEIVER .
Frequency Stability ± 0.005% Quartz Crystal Controlled
Receiving Method Non-diversity
Audio Output Channel 1: 0-55mV/1kΩ, Channel 2: 0-55mV/1kΩ, Channel 1+2: 0-55mV/1kΩ
Signal to Noise Ratio > 80dB
Distortion < 0.5%
Frequency Response 50-15,000Hz
Antenna Telescopic
Power Requirement 240V AC 50Hz for AC adaptor (supplied along with)
Controls Power On / Off Switch, Volume Control for Channel-1, Volume Control for Channel-2
Dimensions W230 × H42 × D150 mm
Weight

353 g
