Denon AVR-X3700H 9.2 Channel 8K Network AV Receiver
- Up to 105W per Channel at 8 Ohms
- Audyssey MultEQ Sound Calibration
- 2.4- or 7.2.2-Channel 3D Audio Support
- Dolby Atmos & DTS:X
Denon AVR-X3700H 9.2-Channel Network A/V Receiver
Denon AVR-X3700H 9.2-Channel Network A/V Receiver
It supports the Dolby Atmos and DTS:X object-based audio formats and has Bluetooth, Wi-Fi, HEOS, and Apple AirPlay 2 built-in for wirelessly connecting with your compatible smart devices. Additionally, the onboard network connectivity allows the receiver to be voice-controlled through your Amazon Alexa, Google Assistant, Siri, or Josh.ai ecosystem
or via the HEOS app.
The AVR-X3700H outputs up to 105W per channel at 8 ohms and features Audyssey MultEQ XT32 sound optimization to tailor the sound to your specific room. Seven HDMI inputs and three outputs are onboard; one of each support 8K video, and they all support 8K upscaling, HDR, and 4:4:4 color, and the main output supports eARC. A USB port on the front provides direct device connectivity and audio playback.

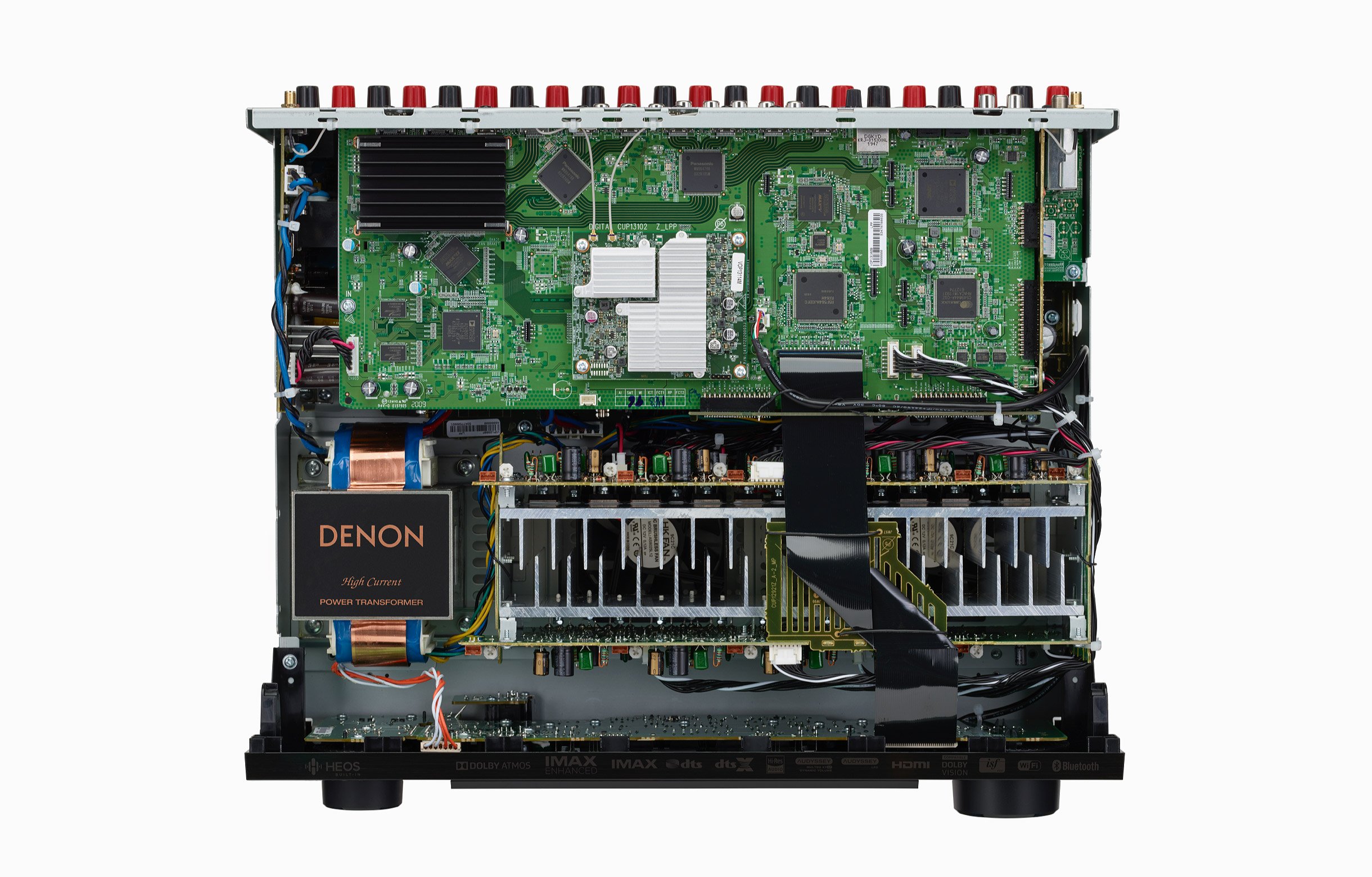

9-Channel Discrete Amplifier
Featuring discrete power output devices on all channels, the AVR-X3700H is rated up to 105 watts per channel at 8 ohms for a dynamic, precise sound experience.
3D Audio Support
Enjoy immersive 3D audio from formats like Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, and DTS Virtual:X for a 3D soundstage. Dolby Atmos uses dedicated up-firing or overhead speakers to provide height sound effects, while DTS:X and DTS Neural:X use your existing speaker setup to create virtual height channels from more traditional 7.2-, 5.2-, or 2.2-channel arrangements.
IMAX Enhanced certification designates that the AVR-X3700H meets certain audio and video performance criteria set by a committee of IMAX and DTS engineers and A/V technical specialists. These criteria include image, sound, scale, and content quality. Onboard IMAX calibrated modes are set and approved by Hollywood colorists to help provide enhanced picture and sound for HDR UHD content.
8K HDMI with eARC
The main HDMI output supports eARC (enhanced Audio Return Channel) to enable uncompressed and object-based audio transmission directly from your TV to the receiver. A dedicated 8K input supports 8K UHD/60 Hz and 4K UHD/120 Hz video pass-through and upscaling. All HDMI inputs support 4:4:4 Pure Color sub-sampling, Dolby Vision, HDR10, HDR10+, HLG, various dynamic HDR formats, and BT.2020 pass-through for augmented color, clarity, and contrast. 8K upscaling and HDCP 2.3 compatibility are available on all HDMI inputs. HDCP 2.3 processing lets you enjoy copy-protected content uninhibited. QMS (Quick Media Switching) is also supported.
Advanced Video Controls
Certified by the Imaging Science Foundation, the AVR-X3700H features a suite of video calibration controls for use by an ISF technician, along with ISF Day and ISF Night video modes.
The AVR-X3700H supports HDR10, HDR10+, HLG, Dolby Vision, and various other dynamic HDR formats to allow the pass-through of enhanced brightness, contrast, and color from compatible source content and devices to your compatible TV.

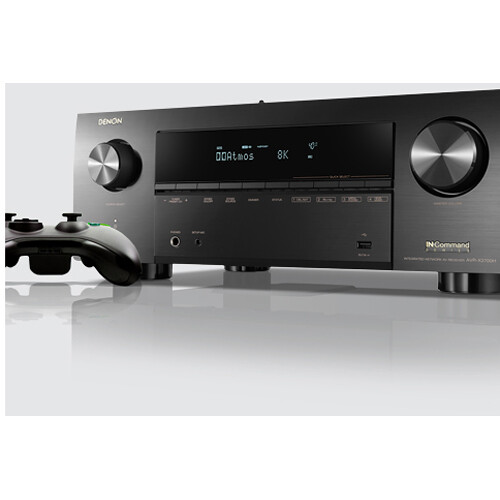

Modern Gaming Support
In addition to 4K/120 Hz pass-through, the AVR-X3700H supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM) for reduced lag and frame tearing to provide a smooth gaming experience.
Works with Various Voice Assistants
Control the receiver hands-free with your Amazon Alexa, Google Assistant, Apple Siri, or Josh.ai ecosystem. Adjust the volume, skip to the next track, switch inputs between your different connected media players, and more. Availability varies by region and country.
High-Resolution Audio Support
The onboard AKM 32-bit D/A converters feature high-resolution audio decoding for multiple lossless file types, including ALAD, FLAC, and WAV at up to 192 kHz/24-bit. It also supports 2.8/5.6 MHz DSD files, the audio coding format of SACD. Play them from memory devices via the front panel USB or over network sources. Other file types like MP3 and WMA are also supported.
Phono (MM) Input
The onboard phono MM input lets you connect your turntable directly to the receiver.
Dual Subwoofer Outputs
Connecting two subwoofers can smooth out low frequencies and provide better dispersion with fewer audible peaks or dips.
The AVR-X3700H is Roon Tested to provide searchable information about your favorite artists and songs. Find lyrics, concert dates, photos, bios, reviews, and more.
Digital Sound Processing
The AVR-X3700H has two sets of DSPs (Digital Sound Processor) chips for decoding and processing Dolby Atmos, DTS:X, IMAX Enhanced (up to 11 channels), Audyssey MultEQ XT32, and sub EQ HT capability.
With Pre-Amplifier Mode, the receiver works as an A/V pre-processor to help provide a clean signal path and enhanced tolerance in clipping level by disconnecting internal amplifiers.
With the AVR-X3700H, you can enjoy 9.2-channel surround sound in one room and a separate source or music stream in another, so you can watch a movie in the main room and another family member can listen to music in a different zone without interruption.
All-Zone TV Audio
Play the audio from your TV to all your zones. Enjoy full discrete audio like Dolby Atmos in the main zone for an immersive experience while playing the same source in the second zone. HDMI and other digital sources are supported for the second zone.
Bluetooth Audio Transmission
Transmit the receiver’s audio to your Bluetooth headphones to enjoy your media without disturbing anyone else in the house. You can also play the audio on both your Bluetooth headphones and connected speakers simultaneously if you or a family member or guest are hearing impaired.
Denon Setup Assistant for Simple Setup
Once you connect the receiver to your TV, the Denon Setup Assistant appears on your TV to walk you through the setup. A row of color-coded speaker connections is laid out horizontally to simplify organization and connection.
Quick Select Functions for Simplified Audio Tuning
The front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-ray, media players, and more – and the receiver adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Selects on the remote for faster control.
Smart TV Connectivity
Control the receiver with your compatible smart TV remote via the HDMI CEC functionality associated with your smart TV. Simply set “HDMI Control” to “On” in the receiver, then set “Smart Menu” to “On” and begin controlling the receiver with your TV remote. The Smart Menu home screen provides you quick access to source and surround mode selections, the receiver’s setup menu, and four Smart Selects.
Built-In Bluetooth, Wi-Fi, AirPlay 2 & HEOS Compatibility
With a dual-antenna transceiver system, you can enjoy robust Bluetooth and dual-band Wi-Fi streaming, even in congested urban environments. Listen to your favorite audio content wirelessly from your compatible smart devices. With HEOS Built-in technology, you can play the same song in every room or a different song in each connected room HEOS supports free and premium Spotify, Pandora, Amazon Music HD, TuneIn, iHeartRadio, SoundCloud, SiriusXM, TIDAL, and more. AirPlay 2 lets you enjoy all your favorite songs from Apple Music.
Mobile Control with the Denon AVR Remote App
The Denon AVR Remote app for iOS and Android allows you to adjust the receiver’s volume, turn it on or off, mute the music, and select a source.
Customized Sound by Audyssey MultEQ XT32
Every room has its own characteristics and acoustical anomalies, so the AVR-X3700H is equipped with Audyssey MultEQ XT32. With the included microphone, it measures the speakers in your home theater during setup and provides a smooth listening experience. Audyssey Dynamic Volume and Audyssey Dynamic EQ help smooth out annoying jumps in volume (such as TV commercials), letting you listen at lower levels and still enjoy clear dialogue, music, and sound effects, with tonal tailoring for full-range clarity at nearly any listening level.
You can store up to two Audyssey settings and switch between them on the fly, giving you the freedom to tweak your listening experience based on the content or your listening environment.
12V Trigger Output
The receiver features a 12V trigger output that lets you turn an external device on or off, even if the receiver is on standby.
Custom Install Ready
The AVR-X3700H features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions, including Control4 SDDP (Simple Device Detection Protocol) certification for seamless integration with compatible equipment.
Remote Monitoring Capability
To allow custom integrators to monitor the status of connected products and remotely troubleshoot issues, Domotz Pro and OvrC remote system monitoring and management technology is onboard, reducing the time for installers to correct a problem
- Multichannel stereo
- Pure Direct
- Audyssey LFC
- Compressed Audio Restorer
- Media Server
- Apple HomePod compatibility
- FLAC HD 192/24, WAV 192/24, ALAC 192/24 lossless format support
- Spotify Connect, Napster, and Mood Mix streaming services
- 3-language GUI on HDMI
- HDMI pass-through in Standby Mode
- Picture Adjust / Noise Reduction
- Auto LipSync
- Zone HDMI output from HDMI source
- 1-line FL display
- Quick Select Plus
- Variable crossover
- Optimized Bass Redirection
- ECO Mode
- Sleep Timer
- Assignable speaker A/B, bi-amp drive, and multiroom speaker terminal
Denon AVR-X3700H SpecsAmplifier
|9.2 Object-Based Configuration: 5.2.4 Object-Based Configuration: 7.2.2 With External Amplifier: 11.2
|Power Output per Channel
|2-Channel Driven: 105 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD 135 W at 6 Ohms / 1 kHz / 0.7% THD
|10 Hz to 100 kHz +1/-3 dB (Direct Mode)
|4 to 16 Ohms
|DTS-HD Master Audio, DTS:X
|Dolby Atmos, Dolby Pro Logic IIz, Dolby TrueHD
|Auro 3D Support
|Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology
|Supported File Formats
|AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
|HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
|8K60p 4:4:4 (3D, BT.2020)

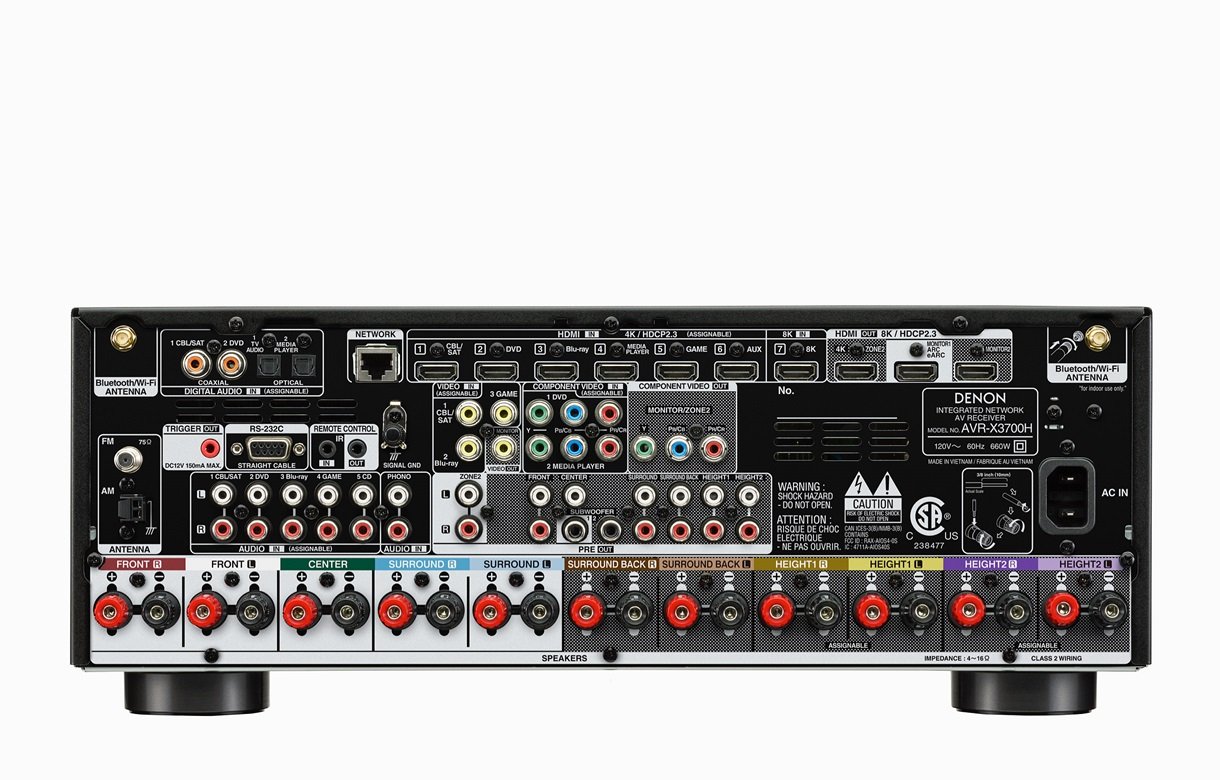

|Rear A/V Inputs
|7 x HDMI 2 x 3RCA Component 3 x RCA Composite 2 x Optical TOSLINK 2 x Digital Coaxial 5 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw
|Rear A/V Outputs
|3 x HDMI 1 x 3RCA Component 1 x RCA Composite 2 x RCA Subwoofer 1 x 11-Channel RCA Pre-Out 1 x Stereo RCA Zone 2 Pre-Out
|1 x USB Type-A Input 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input
|Other Rear I/O
|2 x Bluetooth/Wi-Fi Antenna Terminal Input 1 x AM Antenna Terminal Input 1 x FM Antenna Terminal Input 1 x RJ45 (Ethernet) 1 x DE-9 (RS-232C) 1 x 1/8" / 3.5 mm (12 V Trigger) Output 1 x 1/8" / 3.5 mm (IR) Input 1 x 1/8" / 3.5 mm (IR) Output
|11 x Binding Post Pairs
|HDMI Compression Modes
|Not Specified by Manufacturer
|Audio Return Channel (ARC)
|Signal to Noise Ratio
|100 dB (Direct Mode / IHF-A)
|Wireless Audio Protocols
|AirPlay 2, HEOS
|Virtual Assistant Support
|Amazon Alexa, Apple Siri, Google Assistant, Josh.ai
|AM: 520 to 1710 kHz FM: 87.5 to 107.9 MHz
|AC Input Power
|120-220 VAC, 60 Hz
|Active: 660 W No Sound (ECO Off): 100 W No Sound (ECO On): 60 W CEC Standby: 0.5 W Standby: 0.1 W
|Dimensions (W x H x D)
|17.1 x 9.3 x 15.3" / 43.4 x 23.6 x 38.9 cm (Antenna Up) 17.1 x 6.6 x 15.3" / 43.4 x 16.8 x 38.9 cm (Antenna Down) 17.1 x 6.6 x 14.9" / 43.4 x 16.8 x 37.8 cm (Antenna Removed)
|27.6 lb / 12.52 kg
|Box Dimensions (LxWxH)
|21 x 19 x 10"
