Denon AVR-X6700H 11.2-Channel 8K Network AV Receiver

Key Features

  • Up to 140W per Channel at 8 Ohms
  • Audyssey MultEQ XT32 Sound Calibration
  • 1.4- or 9.1.2-Channel 3D Audio Support
  • Dolby Atmos & DTS:X

Original price was: ৳ 290,000.00.Current price is: ৳ 270,000.00.

Compare

Product Description

Denon AVR-X6700H 11.2-Channel Network A/V Receiver

It supports the Dolby Atmos and DTS:X object-based audio formats and has Bluetooth, Wi-Fi, HEOS, and Apple AirPlay 2 built-in for wirelessly connecting with your compatible smart devices. Additionally, the onboard network connectivity allows the receiver to be voice-controlled through your Amazon Alexa, Google Assistant, Siri, or Josh.ai



The AVR-X6700H outputs up to 140W per channel at 8 ohms and features Audyssey MultEQ XT32 sound optimization to tailor the sound to your specific room. Eight HDMI inputs and three outputs are onboard; one of each support 8K video, and they all support 8K upscaling, HDR, and 4:4:4 color, and the main output supports eARC. A USB port on the front provides direct device connectivity and audio playback



11-Channel Discrete Monolithic Amplifier

Featuring discrete power output devices on all channels, the AVR-X6700H is rated up to 140 watts per channel at 8 ohms for a dynamic, precise sound experience.

3D Audio Support

Enjoy immersive 3D audio from formats like Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, and DTS Virtual:X for a 3D soundstage. Dolby Atmos uses dedicated up-firing or overhead speakers to provide height sound effects in up to 7.1.4- or 9.1.2-channel configurations, while DTS:X and DTS Neural:X use your existing speaker setup to create virtual height channels from more traditional 7.1-, 5.1-, or 2.1-channel arrangements.

DTS:X Pro

DTS:X Pro enables up to 13.2 channels of audio processing with DTS:X Pro; an additional stereo amplifier will be required to drive the two additional audio channels.

IMAX Enhanced

IMAX Enhanced certification designates that the AVR-X6700H meets certain audio and video performance criteria set by a committee of IMAX and DTS engineers and A/V technical specialists. These criteria include image, sound, scale, and content quality. Onboard IMAX calibrated modes are set and approved by Hollywood colorists to help provide enhanced picture and sound for HDR UHD content.

Auro-3D

This technology is designed to provide 3D sound for music, games, broadcast TV, and movies with the Auromatic up-mixing engine.

8K HDMI with eARC

The main HDMI output supports eARC (enhanced Audio Return Channel) to enable uncompressed and object-based audio transmission directly from your TV to the receiver. A dedicated 8K input supports 8K UHD/60 Hz and 4K UHD/120 Hz video pass-through and upscaling. All HDMI inputs support 4:4:4 Pure Color sub-sampling, Dolby Vision, HDR10, HDR10+, HLG, various dynamic HDR formats, and BT.2020 pass-through for augmented color, clarity, and contrast. 8K upscaling (from as low as 480i) and HDCP 2.3 compatibility are available on all HDMI inputs. HDCP 2.3 processing lets you enjoy copy-protected content uninhibited. QMS (Quick Media Switching) is also supported.

Advanced Video Controls

Certified by the Imaging Science Foundation, the AVR-X6700H features a suite of video calibration controls for use by an ISF technician, along with ISF Day and ISF Night video modes.

HDR Compatibility

The AVR-X6700H supports HDR10, HDR10+, HLG, Dolby Vision, and various other dynamic HDR formats to allow the pass-through of enhanced brightness, contrast, and color from compatible source content and devices to your compatible TV.

Modern Gaming Support

In addition to 4K/120 Hz pass-through, the AVR-X6700H supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM) for reduced lag and frame tearing to provide a smooth gaming experience.

Works with Various Voice Assistants

Control the receiver hands-free with your Amazon Alexa, Google Assistant, Apple Siri, or Josh.ai ecosystem. Adjust the volume, skip to the next track, switch inputs between your different connected media players, and more. Availability varies by region and country.

High-Resolution Audio Support

The onboard AKM 32-bit D/A converters feature high-resolution audio decoding for multiple lossless file types, including ALAD, FLAC, and WAV at up to 192 kHz/24-bit. It also supports 2.8/5.6 MHz DSD files, the audio coding format of SACD. Play them from memory devices via the front panel USB or over network sources. Other file types like MP3 and WMA are also supported.

AL32 Processing

This processing technology provides multichannel high-resolution digital audio filtering on all audio channels to help deliver a natural soundstage with enhanced audio imaging.

Phono (MM) Input

The onboard phono MM input lets you connect your turntable directly to the receiver.

Dual Subwoofer Outputs

Connecting two subwoofers can smooth out low frequencies and provide better dispersion with fewer audible peaks or dips.

Roon Tested

The AVR-X6700H is Roon Tested to provide searchable information about your favorite artists and songs. Find lyrics, concert dates, photos, bios, reviews, and more.

Digital Sound Processing

The AVR-X6700H has two sets of SHARC+ core DSP (Digital Sound Processor) chips for decoding up to 11 channels of audio.

Front Wide Channel Support for Dolby and DTS:X

With front wide channel support, you can have two front wide speakers to create a more seamless front surround stage in up to 9.1.2- or 9.1.4-channel speaker configurations; 9.1.4-channel setup requires an additional amplifier to power the extra two speakers.

Dolby Surround Height Speaker Virtualizer

This feature enables virtual 3D sound with just a 7.2- or 9.2-channel configuration with no actual height speakers.

Dolby Center Spread

Dolby Center Spread is designed to widen the sound image from the center channel.

Pre-Amplifier Mode

With Pre-Amplifier Mode, the receiver works as an A/V pre-processor to help provide a clean signal path and enhanced tolerance in clipping level by disconnecting internal amplifiers.

Multi-Source, Multiroom

With the AVR-X6700H, you can enjoy 11.2-channel surround sound in one room and a separate source or music stream in up to two others, so you can watch a movie in the main room and other family members can listen to music from two different sources in two different zones without interruption.

All-Zone TV Audio

Play the audio from your TV to all your zones. Enjoy full discrete audio like Dolby Atmos in the main zone for an immersive experience while playing the same source in the second and third zone. HDMI and other digital sources are supported for the second zone and third zones.

Bluetooth Audio Transmission

Transmit the receiver’s audio to your Bluetooth headphones to enjoy your media without disturbing anyone else in the house. You can also play the audio on both your Bluetooth headphones and connected speakers simultaneously if you or a family member or guest are hearing impaired.

Denon Setup Assistant for Simple Setup

Once you connect the receiver to your TV, the Denon Setup Assistant appears on your TV to walk you through the setup. A row of color-coded speaker connections is laid out horizontally to simplify organization and connection. The receiver will automatically rename the HDMI inputs when they’re connected, or you can rename them manually.

Quick Select Functions for Simplified Audio Tuning

The front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-ray, media players, and more—and the receiver adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Selects on the remote for faster control.

Smart TV Connectivity

Control the receiver with your compatible smart TV remote via the HDMI CEC functionality associated with your smart TV. Simply set “HDMI Control” to “On” in the receiver, then set “Smart Menu” to “On” and begin controlling the receiver with your TV remote. The Smart Menu home screen provides you quick access to source and surround mode selections, the receiver’s setup menu, and four Smart Selects.

Built-In Bluetooth, Wi-Fi, AirPlay 2 & HEOS Compatibility

With a dual-antenna transceiver system, you can enjoy robust Bluetooth and dual-band Wi-Fi streaming, even in congested urban environments. Listen to your favorite audio content wirelessly from your compatible smart devices. With HEOS built-in technology, you can play the same song in every room or a different song in each connected room HEOS supports free and premium Spotify, Pandora, Amazon Music HD, TuneIn, iHeartRadio, SoundCloud, SiriusXM, TIDAL, and more. AirPlay 2 lets you enjoy all your favorite songs from Apple Music.

Mobile Control with the Denon AVR Remote App

The Denon AVR Remote app for iOS and Android allows you to adjust the receiver’s volume, turn it On or Off, mute the music, and select a source.

Customized Sound by Audyssey MultEQ XT32

Every room has its own characteristics and acoustical anomalies, so the AVR-X6700H is equipped with Audyssey MultEQ XT32. With the included microphone, it measures the speakers in your home theater during setup and provides a smooth listening experience. Audyssey Dynamic Volume and Audyssey Dynamic EQ help smooth out annoying jumps in volume (such as TV commercials), letting you listen at lower levels and still enjoy clear dialogue, music, and sound effects, with tonal tailoring for full-range clarity at nearly any listening level.

You can store up to two Audyssey settings and switch between them on the fly, giving you the freedom to tweak your listening experience based on the content or your listening environment.

Two 12V Trigger Outputs

The receiver features two 12V trigger outputs that let you turn two external devices On or Off, even if the receiver is on standby.

Custom Install Ready

The AVR-X6700H features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions, including Control4 SDDP (Simple Device Detection Protocol) certification for seamless integration with compatible equipment.

Remote Monitoring Capability

To allow custom integrators to monitor the status of connected products and remotely troubleshoot issues, Domotz Pro and OvrC remote system monitoring and management technology is onboard, reducing the time for installers to correct a problem



Denon AVR-X6700H Specs

Amplifier
Channels 11.2 Object-Based Configuration: 7.1.4 Object-Based Configuration: 9.1.2 With External Amplifier: 13.2
Power Output per Channel 2-Channel Driven: 140 W at 8 Ohms / 20 Hz to 20 kHz / 0.05% THD 175 W at 6 Ohms / 1 kHz / 0.7% THD 1-Channel Driven: 205 W at 6 Ohms / 1 kHz / 1% THD
Frequency Response 10 Hz to 100 kHz +1/-3 dB (Direct Mode)
Speaker Impedance 4 to 16 Ohms
Audio Processing
DTS Compatibility DTS-HD Master Audio, DTS:X
Dolby Compatibility Dolby Atmos, Dolby Pro Logic IIz, Dolby TrueHD
Auro 3D Support Yes
Upmixing Technology Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology
Supported File Formats AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
Video
HDR Compatibility HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
Pass-Through Support 8K60p 4:4:4 (3D, BT.2020)
Upscaling 8K UHD
GUI Yes
Connectivity

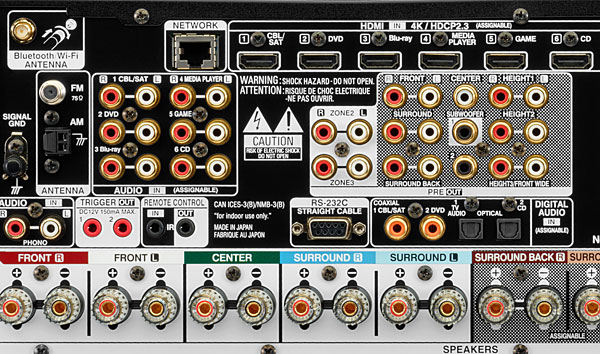

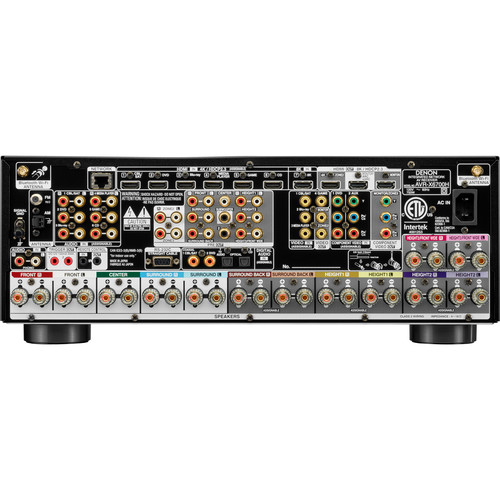

Rear A/V Inputs 7 x HDMI 2 x 3RCA Component 4 x RCA Composite 2 x Optical TOSLINK 2 x Digital Coaxial 6 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw
Rear A/V Outputs 3 x HDMI 1 x 3RCA Component 2 x RCA Composite 2 x RCA Subwoofer 1 x 13-Channel RCA Pre-Out 1 x Stereo RCA Zone 2 Pre-Out 1 x Stereo RCA Zone 3 Pre-Out
Front I/O 1 x HDMI Input 1 x USB Type-A Input 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O 2 x Bluetooth/Wi-Fi Antenna Terminal Input 1 x AM Antenna Terminal Input 1 x FM Antenna Terminal Input 1 x RJ45 (Ethernet) 1 x DE-9 (RS-232C) 2 x 1/8" / 3.5 mm (12 V Trigger) Output 1 x 1/8" / 3.5 mm (IR) Input 1 x 1/8" / 3.5 mm (IR) Output

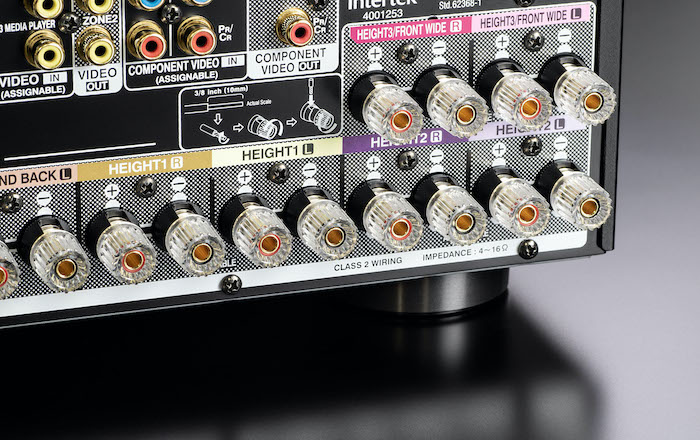

Speaker Connectors 13 x Binding Post Pairs
HDCP Support Version 2.3
Audio Return Channel (ARC) Yes, eARC
HDMI CEC Yes
Input Sensitivity 200 mV
Signal to Noise Ratio 100 dB (Direct Mode / IHF-A)
Wireless Connectivity
Wireless Audio Protocols AirPlay 2, HEOS
Control
Virtual Assistant Support Amazon Alexa, Apple Siri, Google Assistant, Josh.ai
Tuner Section
Tuner Type AM, FM
Radio Frequencies AM: 520 to 1710 kHz FM: 87.5 to 107.9 MHz
Power
AC Input Power 120-220 VAC, 60 Hz
Power Consumption Active: 750 W No Sound (ECO Off): 110 W No Sound (ECO On): 65 W Network Standby: 3.5 W CEC Standby: 0.5 W Standby: 0.1 W
Physical
Dimensions (W x H x D) 17.1 x 9.3 x 15.3" / 43.4 x 23.6 x 38.9 cm (Antenna Up) 17.1 x 6.6 x 15.3" / 43.4 x 16.8 x 38.9 cm (Antenna Down) 17.1 x 6.6 x 14.9" / 43.4 x 16.8 x 37.8 cm (Antenna Removed)
Weight 32 lb / 14.51 kg
Packaging Info
Package Weight 38.735 lb
Box Dimensions (LxWxH) 20.9 x 18.5 x 11.8"
