Denon DRA 800H 2.1-Channel Network Stereo AV Receiver

Key Features

  • Up to 100W per Channel at 8 Ohms
  • HDR UHD Pass-Through
  • HDMI with 3D and Audio Return Channel
  • 5 x HDMI-In / 1 x HDMI-Out

Original price was: ৳ 95,000.00.Current price is: ৳ 89,000.00.


Product Description

Denon DRA 800H 2.1-Channel Network AV Receiver

Denon DRA-800H 2.1-Channel Network A/V Receiver

It has Bluetooth, Wi-Fi, and Apple AirPlay 2 built-in for wirelessly connecting with your compatible smart devices. Additionally, the onboard network connectivity allows the receiver to be voice-controlled through your Amazon Alexa, Google Assistant, Siri, or ecosystem, or via the HEOS app

The DRA-800H outputs up to 100W per channel at 8 Ohms and features five HDMI inputs and one output, all of which support 4K, HDR, and 4:4:4 color; the output also supports ARC. A USB port on the front provides direct device connectivity and audio playback.

2-Channel Discrete Amplifier

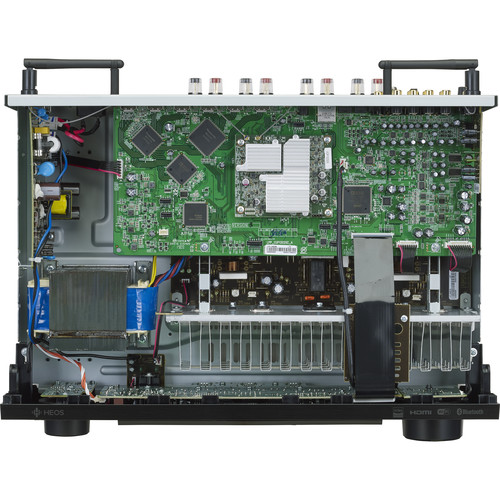

Featuring a discrete high-current power amplifier, symmetrical design, and an OFC (oxygen-free copper) winding power transformer, the DRA-800H is designed to deliver up to 100 watts per channel at 8 ohms. For compatibility with a variety of speakers, the receiver is equipped with low-impedance drive capability. An optional auto ECO mode helps reduce power consumption without sacrificing audio quality.

High-Resolution Audio

The receiver features an AKM 32-bit D/A converter that can decode up to 24-bit / 192 kHz ALAC, FLAC, and WAV lossless files, as well as DSD 2.8 MHz and 5.6 MHz tracks via the front USB port and network sources. You can also listen to other popular formats, like MP3 and WMA.

Speaker A/B and Zone 2 Pre-Out

You can connect two pairs of speakers for A/B switching. You can also extend your system to a second room and listen to a different source via the Zone 2 pre-out.

Phono Input

The onboard phono input lets you connect your turntable directly to the receiver.

Dual DAC Circuitry

The DRA-800H uses an eight-channel DAC to deliver enhanced stereo imaging and detail. By assigning two DACs per channel, including the subwoofer output, the receiver’s dynamic range and signal-to-noise ratio are augmented.

HDMI with HDCP 2.3 Compatibility

All five HDMI inputs support 4:4:4 Pure Color sub-sampling, BT.2020 pass-through, HDR10, and HLG (Hybrid Log-Gamma); full 4K Ultra HD with 60 Hz pass-through, 3D, and HDCP 2.3 compatibility is available on all five HDMI ports to support copy-protected content. Additionally, the HDMI output supports ARC, so audio that originates in apps built into your display are passed through to the receiver through the connected compatible HDMI cable.

Built-In Bluetooth & Wi-Fi

With built-in Bluetooth and Wi-Fi connectivity, the DRA-800H is equipped with a dual-antenna transceiver system for robust streaming, even in congested urban environments, allowing you to enjoy listening to your favorite audio content wirelessly from your compatible smart devices.

Mobile Control with the Denon AVR Remote App

The Denon AVR Remote app for iOS and Android allows you to adjust the receiver’s volume, turn it on or off, mute the music, and select a source.

Smart TV Connectivity

Control the receiver with your compatible smart TV remote via the HDMI CEC functionality associated with your smart TV. Simply set “HDMI Control” to “On” in the receiver, then set “Smart Menu” to “On” and begin controlling the receiver with your TV remote. The Smart Menu home screen provides you quick access to source and surround mode selections, the receiver’s setup menu, and four Quick Selects.

Auto Low Latency Mode (ALLM)

ALLM helps ensure that Xbox One users have a responsive and immersive gaming experience when connected with compatible TVs.

Quick Select Functions for Simplified Audio Tuning

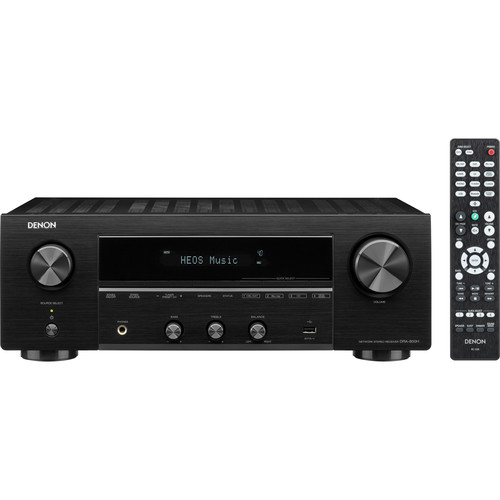

The front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-ray, media players, and more – and the receiver adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Selects on the remote for faster control.

Works with Various Voice Assistants

Control the receiver hands-free with your Amazon Alexa, Google Assistant, Apple Siri, or ecosystem. Adjust the volume, skip to the next track, switch inputs between your different connected media players, and more. Availability varies by region and country.

HEOS Music Streaming

Enjoy your favorite music in any room of your home wirelessly with built-in HEOS technology. Play the same song in every room or select a different song for each connected room. Stream music stored on your home network by connecting to your HEOS  wireless speakers or other HEOS-enabled receivers. Play music from Spotify, TuneIn, Pandora, Amazon Prime Music, iHeart Radio, SiriusXM, SoundCloud, TIDAL, Napster, Deezer, and local music.

Ready for Custom Installations

The DRA-800H features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions, including Control4 SDDP (Simple Device Discovery Protocol). An IR remote control jack is on the rear panel for wired remote compatibility with other components in your system. Remote monitoring is also supported for troubleshooting.

Additional Features

  • Discrete power amplifier
  • Pure Direct
  • Gold-plated RCA terminals
  • Compressed Audio Restorer
  • Gapless playback (FLAC, WAV, ALAC, DSD)
  • TuneIn internet radio
  • Compatible with Android, iOS, and Amazon Kindle tablet apps
  • Media Server
  • Spotify Connect, Pandora, SiriusXM, Mood Mix, and more streaming services
  • Bluetooth re-transmit for Bluetooth headphones via firmware update
  • 3-language hybrid GUI overlay on HDMI
  • HDMI pass-through in Standby Mode
  • Auto LipSync
  • HDMI diagnostics
  • 1-line FL display
  • Setup Assistant
  • Quick Select Plus
  • Firmware update by network or USB
  • Auto Power Off
  • Sleep Timer

Denon DRA-800H Specs

Main Unit
Channels 2.1
Power Output 100 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 Channels Driven 120 W per Channel @ 6 Ohms, 1 kHz, 0.7% THD, 2 Channels Driven 175 W @ 6 Ohms, 1 kHz, 10% THD, 1 Channel Driven
Speaker Impedance A or B: 4 to 16 Ohms A and B: 8 to 16 Ohms
Files Supported MP3, WMA, AAC, DSD (2.8/5.6 MHz), FLAC, ALAC, and WAV
Tuner Type AM & FM
Reception Frequencies FM: 87.5 to 107.9 MHz AM: 520 to 1710 kHz
Pass-Through 4K, ALLM (Auto Low-Latency Mode) CEC, eARC, 3D
HDR Support HDR10, HLG
HDCP Compliance 2.3
Wi-Fi Yes
Bluetooth Yes

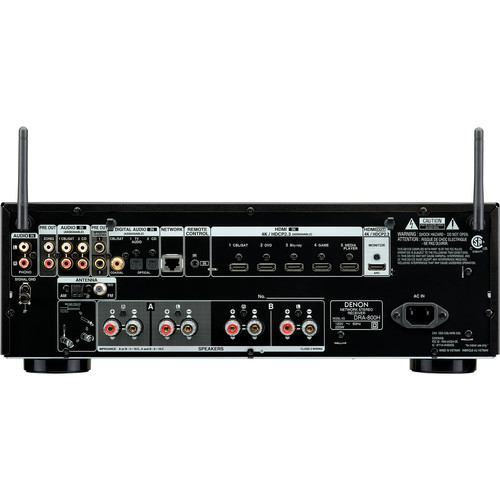

Inputs 5 x HDMI 3 x Gold-Plated Stereo RCA (1 Phono MM with Ground Screw) 2 x Optical TOSLINK 1 x Digital Coaxial
Outputs 1 x HDMI 2 x Gold-Plated RCA Subwoofer Pre-Outs 1 x Gold-Plated Stereo RCA Zone 2 Pre-Out 1 x 1/4" / 6.35 mm Headphone (Front)
Other Connections 1 x USB Type-A (Front) 1 x RJ45 Ethernet LAN 1 x AM Antenna 1 x FM Antenna 1 x 1/8" / 3.5 mm IR Remote Control In
Speaker Connectors 4 x Gold-Plated Binding Post Pairs (A/B)
A/B Speaker Selection A, B, A and B
Physical Specifications
Power Requirements 120-220 VAC, 60 Hz
Standby Power Consumption 0.1 W CEC Standby: 0.5 W
Dimensions 17.1 x 6 x 13.3" / 43.4 x 15.1 x 33.9 cm with Antennas Horizontal 17.1 x 8.5 x 13.3" / 43.4 x 21.5 x 33.9 cm with Antennas Vertical
Weight 18.3 lb / 8.3 kg
Packaging Info
Package Weight 22.075 lb
Box Dimensions (LxWxH) 20.5 x 17.2 x 9.2"
