Product Description

Retro design with Dolby Atmos® music performance

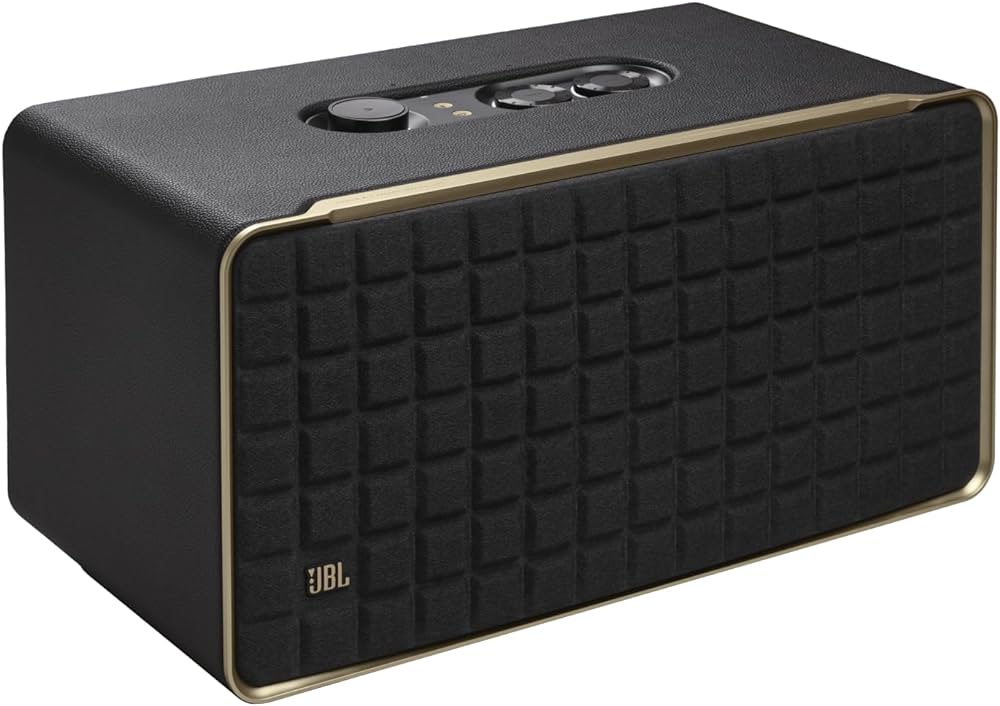

Fill any room with cutting-edge sound and striking retro style with the JBL Authentics 500. From its Quadrex grille to its custom leather-like enclosure, the speaker was inspired by JBL’s iconic 1970s designs, updated for the 21st century with the latest sound and control technologies. Immerse yourself in high-definition lifelike sound with Dolby Atmos® Music thanks to the Authentics 500’s aluminum tweeters and patented SlipStream™ bass port. With Google Assistance and Amazon Alexa available simultaneously*, you can play your favorite music, control your smart home devices, and more, hands-free, using just your voice.

Sound system
3.1 & Dolby Atmos Music
Power supply
100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%)
270W
Transducer
3 x 25mm aluminum dome tweeter + 3 x 2.75" midrange + 6.5" subwoofer
Networked standby power
< 2.0 W

Operating temperature:0 °C - 45 °C

Frequency response
40Hz - 20kHz (-6dB)

Audio inputs:1 Audio in, Bluetooth/WIFI, Ethernet and USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions (W x H x D)
447 x 240 x 255.7 mm / 17.60" x 9.45" x 10.07"
Weight
7.8 kg / 17.20 lbs
Packaging dimensions (W x H x D)
515 x 322 x 315 mm / 20.3" x 12.7" x 12.4"
Packaging Weight
11.4 kg / 25.1 lbs

USB port
Type C
USB rating
5V DC, 1A
Supporting ­formats
mp3,WAV
MP3 codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
16 - 48 kHz
MP3 bitrate
80 - 320 kpbs
Bluetooth version
5.3
Bluetooth pro­le
A2DP 1.3.2, AVRCP 1.5

Bluetooth transmitter frequency range:2400 MHz - 2483.5 MHz

Bluetooth transmitter power:<17 dBm

Wi-Fi network:IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range
2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power
<20 dBm
5G Wi-Fi transmitter frequency range
5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power
<23 dBm

Built-in Wi-Fi
Yes
3D Dolby Atmos
Yes
JBL One App
Yes
3.5 mm audio cable Input
Yes
Voice Assistant integration
Yes
Bluetooth
Yes
