Wemax One Full HD Ultra Short Throw 7000 Lumens Smart Android Laser Projector

Product Description

Fengmi WEMAX ONE laser projection TV 150 inches

Go home to watch the big show

Ultra short focal length, free of wiring when placed on the wall

150 inches large projection size

ALPD 3.0 laser light source technology

Wide color gamut, high brightness, 3000:1 native contrast ratio

Mi TV same content source

The WEMAX ONE laser projection TV can project a large screen up to 150 inches, so you don’t have to go to the cinema.

It can also make you eye-opener and enjoyable

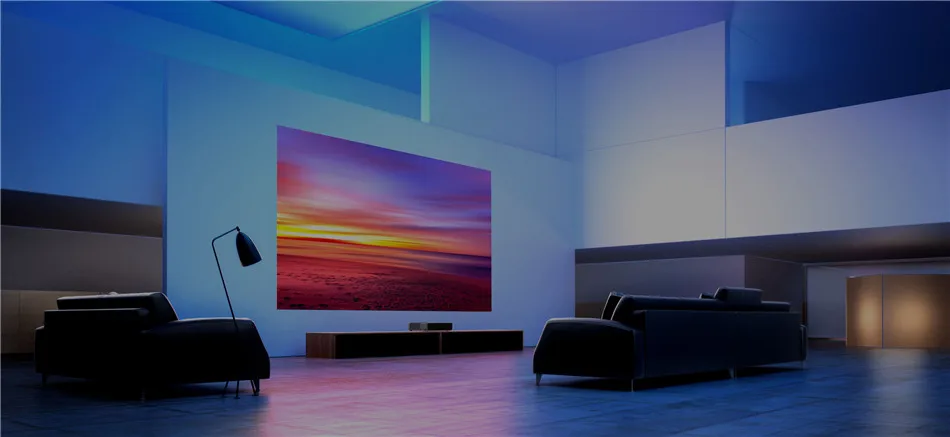

150-inch projection screen

Into the living room, into the theater

The 80-150 inch super large projection screen can easily adjust the screen size according to the wall area of the home. Watching a shocking movie on the big screen, enjoying a concert, or playing a game happily is an unprecedented feast for the senses.

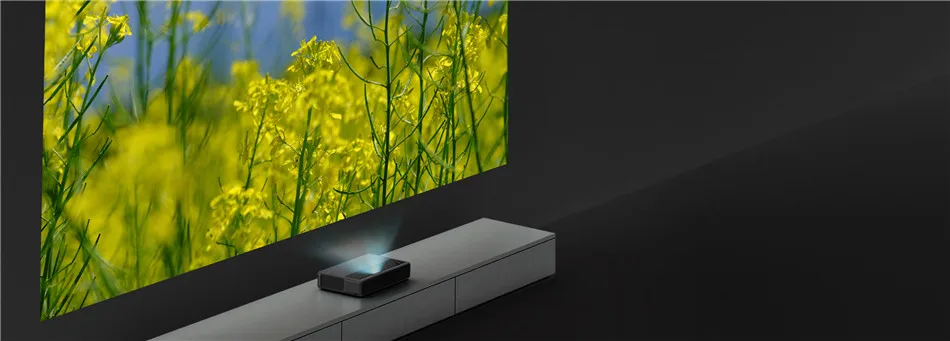

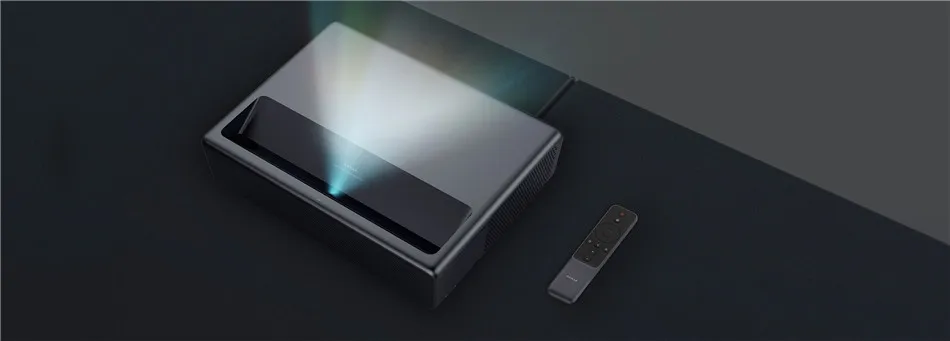

Ultra short focal lens design

Large screen can be projected at close range

Using 0.233:1 large depth of field ultra-short focal lens design,

To break the obstacles caused by traditional projection and long-distance projection, the distance between the machine and the wall is 5-50cm.

There is no trouble of wiring, it can be placed on the TV cabinet or placed on the wall,

Does not occupy indoor space, and there is no screen occlusion problem,

Concentrate on appreciating every detail in the picture.

(5-50CM wall distance/easy to place and move/1.5M power cord)

Cinema quality

The WEMAX ONE laser projection TV has a native contrast ratio of 3000:1 comparable to theater-level,

Make the projection picture in the dark night or dim scene, every detail is still clearly presented. At the same time, up to 16%~18%

The ratio of red light makes the colors richer, more beautiful and real.ALPD 3.0 laser fluorescence display technology

Adopting Guangfeng Technology* brand new ALPD laser fluorescent display technology,

Overcome the technical problems in the market that the picture color, contrast and brightness cannot have at the same time,

Makes the picture quality and color more vivid, and the details of the dark parts are clearer, achieving the highest color brightness in the same DMD. At the same time, the size of the whole machine is reduced, and the service life of the light source is improved.

* Guangfeng Optoelectronics is the pioneer of the world-renowned high-brightness laser phosphor technology. More than 3000 cinemas around the world have used this technology with 4000+ screens.Over 85% NTSC color gamut

Wide color gamut distribution, true color reproduction

Color is an important part of the entire projection screen. Incorrect colors and insufficient color gamut will affect the color quality of the screen and cannot restore the true colors of the film.

The proportion of red light in traditional projectors is less than 10%, which makes the picture obviously yellowish green.

WEMAX ONE laser projection TV adopts innovative five-segment color wheel technology, the red light ratio is as high as 16%~18%*,

The NTSC color gamut range is as high as 85%, which restores more realistic and richer picture colors.

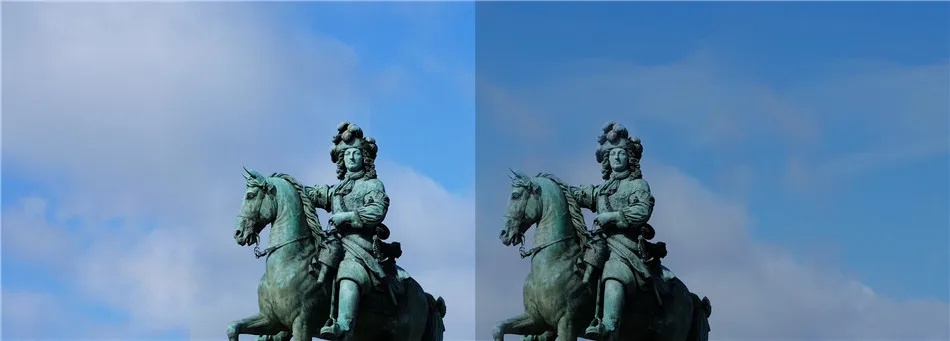

Left: WEMAX ONE

3000: 1 native contrast

Dark picture details can also be clearly visible

People often complain that many dark pictures in movie theaters are not clear and many important details are missed.

The native contrast ratio of WEMAX ONE laser projection TV can reach 3000:1,

Exceed the movie theater 2000:1 standard. The resolution reaches 1920*1080 and supports HDR images, so that the dark details can be clearly seen.

Left: WEMAX ONE

The color brightness CLO of WEMAX ONE laser projection TV is as high as 1688 ANSI lumens, and it is 100% RGB CLO;

At the same time, the brightness of the projected screen reaches 15~18fL*, which is comparable to movie theater standards.

*fL stands for Ford Lambert, which is the unit of display brightness of domestic movie theaters. The domestically recognized brightness standard for 2D projection is 14fL, and the brightness standard for 3D is 4.5fL.

Using Texas Instruments (TI) custom DLP digital light processing technology, the light is projected after digital processing of the image signal,

It is based on the DMD chip to complete the visual digital information display technology. Using this technology, WEMAX ONE laser projection TV can show the picture more clearly and brightly, while the picture details are rich and realistic, and the degree of reproduction is higher.

5.4um pixel DMD chip

2.07 million reflective lenses, so that every inch of the picture can be seen clearly on the big screen

There are more than 2.07 million 5.4um reflective lenses on a small chip, and each lens is like a small mirror, independently flipping ±17° at a frequency of 166,600 times per second.

The beams of different colors are converged to an ultra-short-focus laser lens to finally present a high-definition picture.

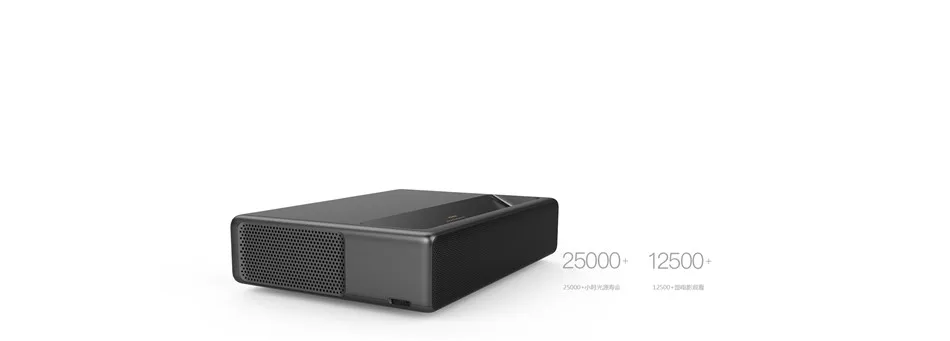

25000+ hours long light source life

The ALPD 3.0 laser light source technology of Guangfeng Optoelectronics can effectively ensure that the service life of the light source exceeds 25000 hours, which can meet the requirements of watching more than 10,000 movies.

Demand (2 hours/unit calculation), so that good movies always accompany.

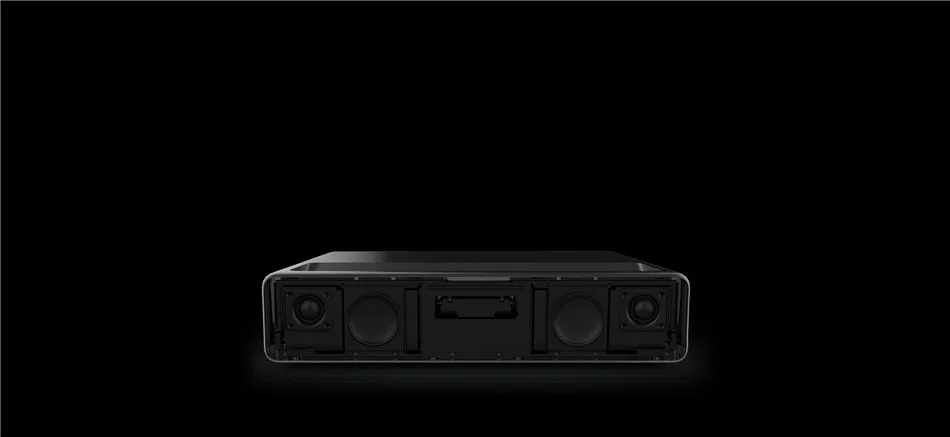

Dual full range + dual high frequency high fidelity speakers

Exclusive customized research and development, listen to good sounds

With a good picture, how can there be a lack of good sound? Using Xiaomi TV to develop a custom speaker system, built-in high-power dual full-frequency + dual high-fidelity speakers.

The unique sound cavity inverted tube design supports DOLBY and DTS dual decoding, so you can have cinema-level audio-visual enjoyment at home.

Anti-direction sensor

Automatic detection to avoid direct laser beam to eyes

The principle of projection reflection imaging is adopted to effectively reduce the radiation and fatigue to the human eyes. An anti-direct-view sensor is added to both sides of the lens, which automatically detects the human body when someone approaches.

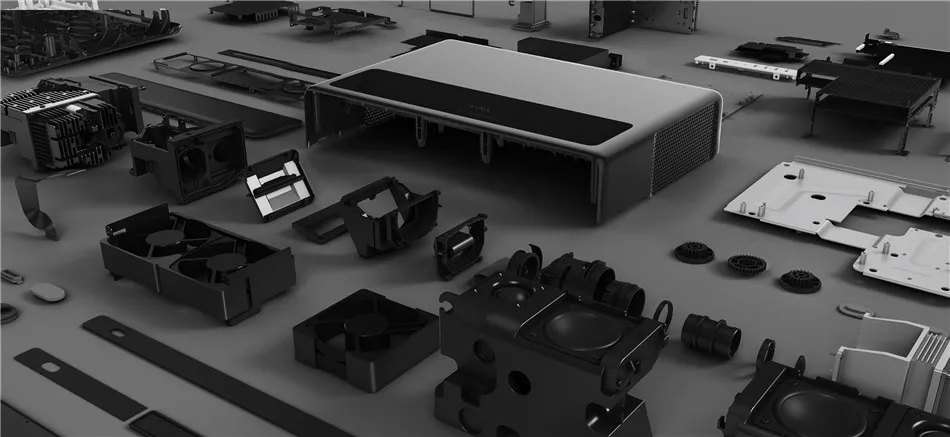

Instantly reduce the projection brightness to a minimum, avoid direct laser light source to your eyes, and protect your eyesight.Fully customized modular hardware system

Optimize the internal space and reduce the volume of the whole machine

Adopt a fully customized modular hardware system, clever use of internal space,

The rules are arranged closely, and the space is reasonably optimized,

At the same time, the volume of the whole machine is reduced as much as possible, and it does not occupy the space of the home.

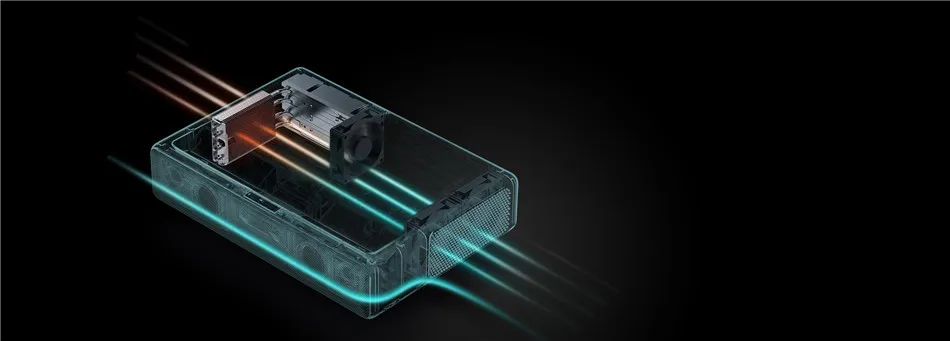

New high-power cooling system

Effective heat dissipation, prolong the service life of the whole machine

Many people worry that long-term use will cause the machine to overheat and affect the safety of use. Brand new cooling system,

Equipped with 3 large fans, and each module is designed with a dedicated air outlet,

Optimize the direction of the airflow between the modules, connect the heat sink with a heat pipe,

Quickly and efficiently send out the heat generated by the whole machine to achieve the ideal heat dissipation effect

The same audio-visual enjoyment as Xiaomi TV

MIUI TV system, Xiaomi video content source

It adopts the same MIUI TV system as Xiaomi TV, enjoys the massive video entertainment resources of Xiaomi video, large storage space, and supports multi-platform video playback.

Enjoy high-quality content resources without leaving home.

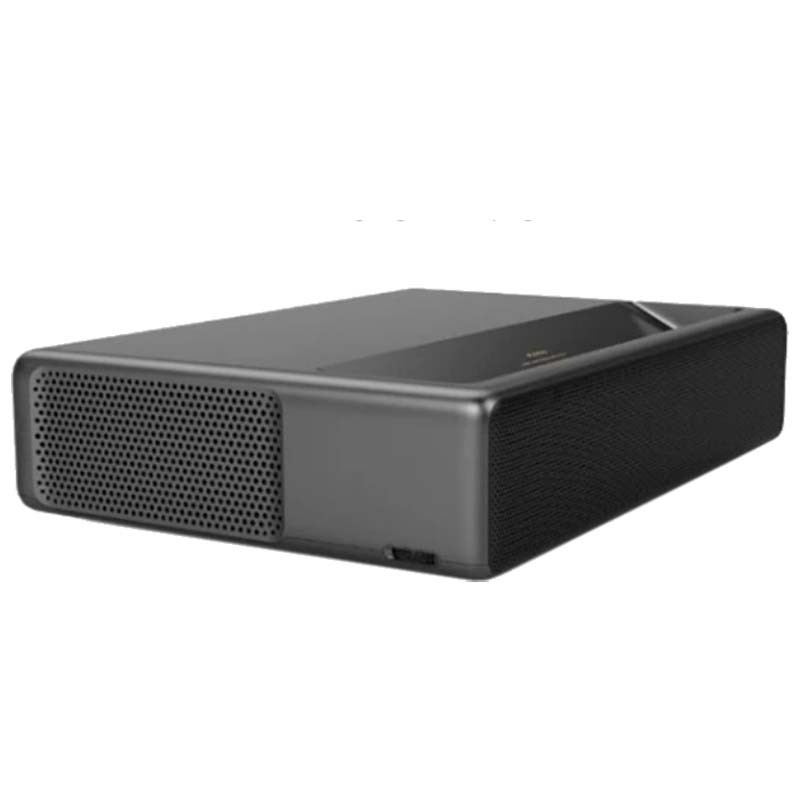

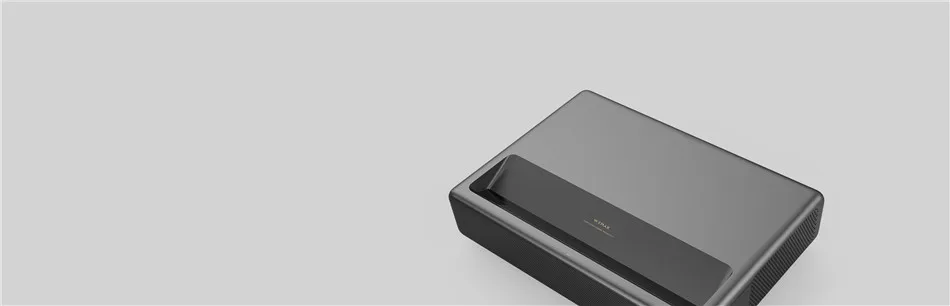

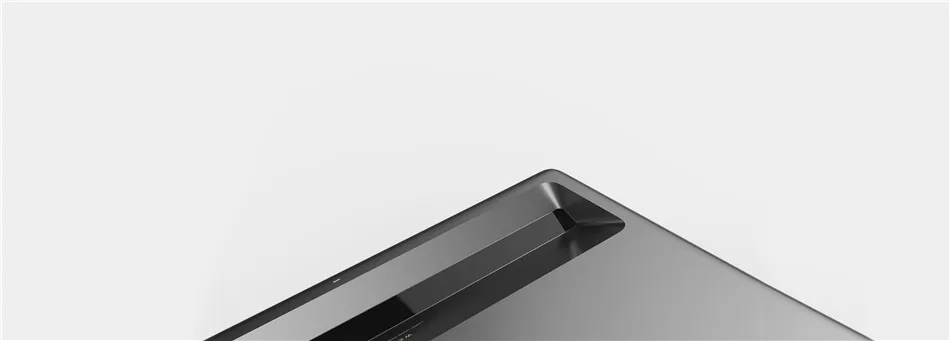

Bright and round, exquisite appearance

Easily integrate into different home styles

While achieving a more compact internal space structure, we have won the huge challenge from heat dissipation, low noise and shock absorption.

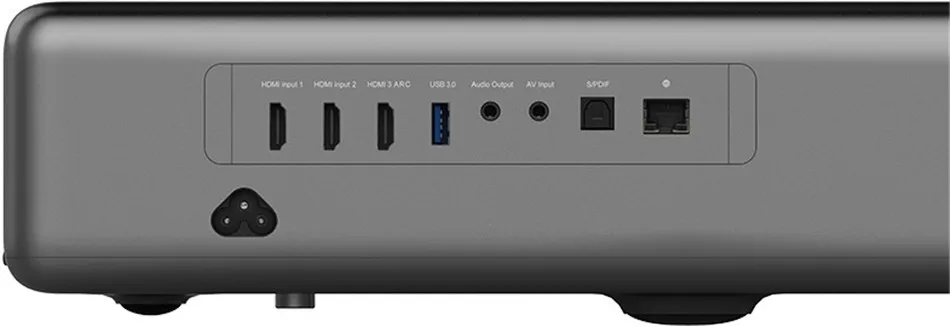

Rich interface configuration

Meet the needs of a variety of external equipment

The whole machine has 10 expansion interfaces, which can satisfy office and entertainment. Can connect computers, speakers, microphones,

Game controllers are connected with it to meet the needs of different fans.

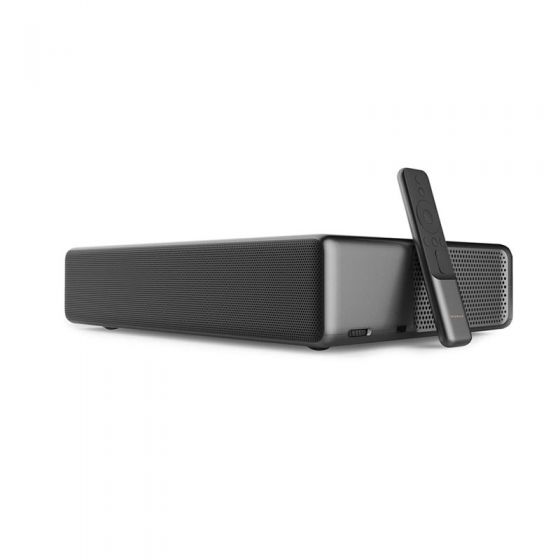

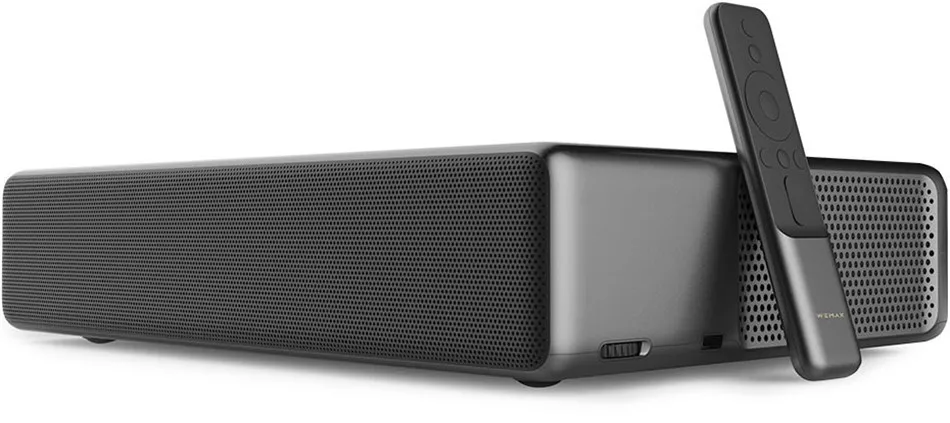

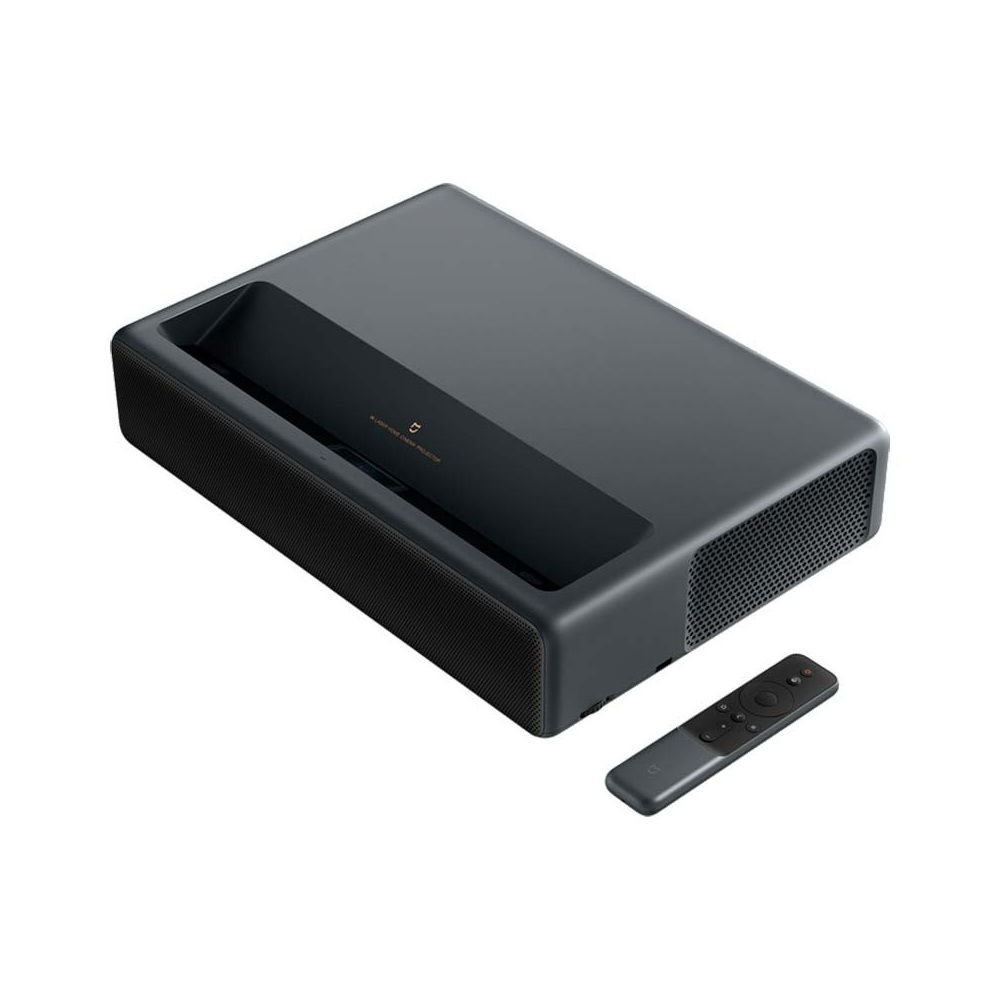

New remote control appearance design

Using the same material as the whole machine, comfortable grip

To ensure the consistency and beauty of the overall design,

Fengmi WEMAX ONE laser projection TV Bluetooth remote control adopts ABS body material,

The grip is more comfortable.

This is the world’s first ultra-short projector with advanced laser display ( ALPD ) technology, which delivers up to 150 inches of full HD quality images in 50 centimeters, with product life up to 25, 000 hours. To achieve user-friendly design goals, the high-tech product uses a compact, minimalist “box” design language, and carefully maintained the host and bluetooth remote control design style consistency. In any corner of room control the host, voice assistant quickly find programs and other interactive ways for the user to bring a new movie viewing experience.

Main Features

● Features ALPD 3.0 laser light source technology by Appotronics
● In addition to high-quality lasers, the unit also features a top-end speaker system for a true cinema experience
● Can project a display up to a maximum of 150 inches
● Offers a maximum of 7000 lumens source brightness and a 3000 : 1 native contrast
● The remote control is powered by 2 x AAA battery ( not included )
● This device support English.

Basic information

Optical parameter

Display: 0.47 inch DMD
Resolution:Full HD ( 1920 x 1080 )
Support resolution: 4K
Light source: ALPD 3.0
Brightness: 7000 lumens
Light mode: highlight, movie, normal
Auto mode: save power, eye protect
Brightness uniformity: JBMA more than 80 percent
Color gamut: NTSC 80 – 85 percent
Central contrast: 2500 : 1 – 3500 : 1
Color temperature: standard, cold color, warm color

Projection parameter

Throw ratio: 0.233 : 1
Best project distance: 150 inch

System parameter
CPU: T968 Cortex-A53 4-core 1.8GHz / 64bit
RAM: 2GB DDR3
ROM: 16GB eMMC Flash

System function

Operate OS: MIUI TV
Support Android: Android 6.0 and above
WiFi: dual-band 2.4GHz + 5GHz
bluetooth: V4.0
HDR: support
keystone-correction: four corners, eight corners
Focus: power focus
3D: support

Other parameters

Voltage: 200 – 240V at 50 / 60Hz
External speaker: support
Speaker: full frequency speaker x 2 + high frequency speaker x 1
Remote control: bluetooth, voice, touch control
Connection: Ethernet x 1, SPDIF x 2, audio out x 1, AV 3.5 x 1, USB 3.0 x 1, ARC x 1, HDMI 2.0 x 2, USB 2.0 x 1
Voice: less than 32dB ( at 25 Deg.C )
Power consume: 250W ( max )
