Product Description

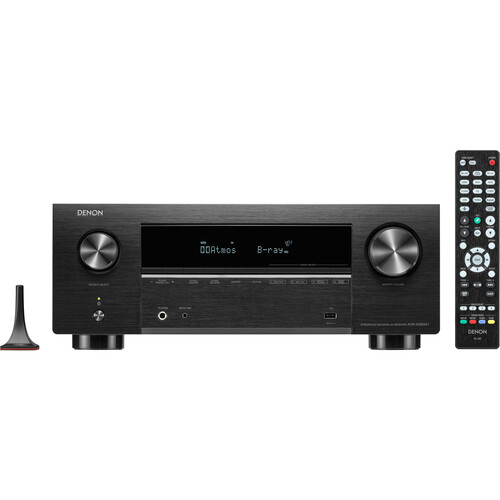

Home theater enthusiasts with larger rooms will enjoy the capabilities of the AVR-X3800H 9.4-Channel Network A/V Receiver from Denon. Filling your space is easy with support for 9.4-channel audio, or you can go for a more immersive experience with Auro 3D and a 5.1.4 Dolby Atmos setup. Every channel receives up to 105W of power and every HDMI input supports up to 8K resolution sources, as do two of the three outputs. Even with so much, you get even more flexibility if you need it with a pre-amplifier mode and the ability to process up to 11.4 channels. Not only can the X3800H be the center of your theater room, but also the center of your whole home, with Wi-Fi & Bluetooth wireless connectivity and HEOS built-in whole-home audio.
Amplifier
Channels |
9.4
Object-Based Configuration: 5.1.4
With External Amplifier: 11.4
With External Amplifier: 7.1.4 |
Power Output per Channel |
2-Channel Driven:
105 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
135 W at 6 Ohms / 1 kHz / 0.7% THD
1-Channel Driven:
215 W at 6 Ohms / 1 kHz / 10% THD |
Audio Processing
DTS Compatibility |
DTS Neural:X, DTS Virtual:X, DTS-HD Master Audio, DTS:X |
Dolby Compatibility |
Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Pro Logic IIz, Dolby Surround, Dolby TrueHD |
Auro 3D Support |
Yes |
Upmixing Technology |
Dolby Surround, DTS Neural:X |
Supported File Formats |
2.8 MHz DSD, 5.6 MHz DSD, AAC, ALAC, FLAC, MP3, WAV, WMA via USB |
Video
HDR Compatibility |
HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
Pass-Through Support |
8K |
Upscaling |
8K UHD |
GUI |
Yes |
Connectivity

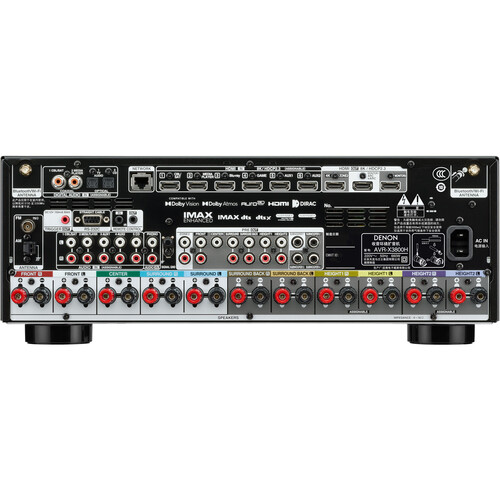

Rear A/V Inputs |
6 x HDMI 2.1
2 x Optical TOSLINK
2 x Digital Coaxial
5 x Stereo RCA
1 x Stereo RCA (Phono MM) with Ground Screw |
Rear A/V Outputs |
2 x HDMI
1 x HDMI Zone 2
1 x 11-Channel RCA Pre-Out
4 x RCA Subwoofer Pre-Out
1 x Stereo RCA Zone 2 Pre-Out |
Front I/O |
1 x USB-A Input/Output
1 x 1/4" / 6.35 mm Headphone Output
1 x 1/8" / 3.5 mm Setup Mic Input |
Other Rear I/O |
2 x Bluetooth/Wi-Fi Coaxial F-Type Input/Output
1 x FM Coaxial F-Type Input
1 x AM Block Input
1 x RJ45 (Ethernet) Input/Output
1 x 1/8" / 3.5 mm (Remote) Input
1 x 1/8" / 3.5 mm (Remote) Output
1 x DE-9 (RS-232C) Input
1 x 1/8" / 3.5 mm (12 V Trigger) Output |
Speaker I/O |
11 x Binding Post Pairs (Front, Center, Height, Height 2, Rear, Rear Surround) |
HDCP Support |
Version 2.3 |
HDMI Compression Modes |
4K120AB / 8K60AB |
Audio Return Channel (ARC) |
ARC, eARC |
HDMI CEC |
Yes |
Media Card Slot |
None |
A/B Speaker Selection |
Yes |
Bi-Amp Capability |
Yes |
Wireless Connectivity
Bluetooth |
Yes |
Wireless Audio Protocols |
AirPlay 2, HEOS, Roon Ready, Spotify Connect |
Control
External Control Support |
Android/iOS Control App |
Virtual Assistant |
Apple AirPlay, Works with Alexa, Works with Google Assistant, Josh.ai, Siri |
Power
Power Consumption |
Active: 660 W
No Sound (ECO On): 60 W
No Sound (ECO Off): 100 W
Standby: 0.1 W
CEC Standby: 0.5 W
Network Standby: 2 W |
Physical
Dimensions (W x H x D) |
17.1 x 6.6 x 14.9" / 43.4 x 16.8 x 37.8 cm (Antenna Removed)
17.1 x 9.3 x 15.3" / 43.4 x 23.6 x 38.9 cm (Antenna Up) |
Weight |
27.6 lb / 12.5 kg |
Packaging Info
Package Weight |
33 lb |
Box Dimensions (LxWxH) |
21 x 19.5 x 10.5" |
